Kumar Metal Industries, a name to be reckoned in the industry for impeccable range of Oil Mill Machinery, offers a wide range of machines that help in efficient processing of oil. We are operating in the industry from last seventy years and largely appreciated for our extensive one-line high quality products. All our products are made in accordance to international quality parameters and therefore, we are able to cater our clients with products that showcases sturdy construction, less downtime, easy operation, and lesser maintenance. All our products are made with the top quality raw materials.
 |
Hammer Mill |
 |
|
|

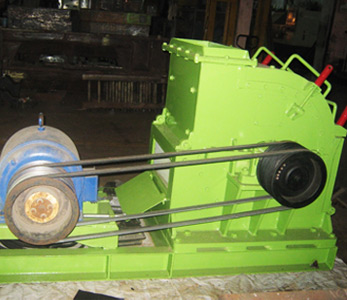

Kumar Hammer Mill
Hammer Mills are used to pulverize copra, palm kerenl & other oil seeds. The Hammers (Beaters) are rectangular for efficient grinding and are made from hardened alloy steel.
Salient Features :
- Easy opening arrangement.
- Easy removal of the mesh which leads to less down time due to chocking.
- Hardened tempered specially designed rectangular beaters.
- Grater plates are provided to ensure efficient pulvarising.
- Alloy steel well balanced rotor shaft supported on self aligning double raw spherical roller bearing ensure a very smooth, vibration free rotation of the rotor.
- Hammer mill and motor mounted on a single base frame with shock absorption rubber padding.
| MODEL |
CAPACITY/HR |
H.P.REQUIRED |
| HM-A1 |
500 KGS |
7.5 HP |
| HM-1 |
1000 KGS |
20 HP |
| HM-2 |
2000 KGS |
40 HP |
| HM-3 |
3000 KGS |
50 HP |
| HM-5 |
5000 KGS |
75 HP |
| HM-8 |
8000 KGS |
100 HP |
Salient Features
- Raised rim around the edges of plate so as to form a chamber between 2 plates.
- High rate of filtration
- Powerful pump and accurate assembly
- Leakproof joints to withstand operating pressure
- Cast Iron, short blasted plates leads to easy flow of filtered oil without spillage under pressure.
- Machined, well furnished, taped edges of the frame also stop spillage of oil under pressure and assure long life of the cloth.
- Projected edges of the plates form a very good filtration chamber which will help for a very efficient filtration capacity.
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
| |
|
