Kumar Metal Industries, a pioneer in the manufacture of Oil Mill Machinery, offers a wide assortment of machinery for the efficient processing of oil. Our oil mill machineries are known for its robust & sturdy construction, less downtime, easy operation, and lesser maintenance. These are manufactured by using the best raw materials, equipment, and technology.

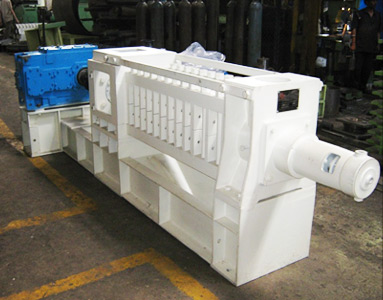

Oil Expeller - 15 Tons Per Day
Oil Expeller - 15 Tons Per Day
Single Chamber Oil Expeller

Kumar New Oil_N_Oil Series Single Chamber Oil Expellers are designed for greater flexibility, capacity and efficiency. The expellers are supplied with 2 to 6 stage stack cooker for conditioning the oil seeds before crushing. These cookers are self driven with their independent geared motor.New Oil_N_Oil Series Expellers are based on the latest design and technology due to the constant in house R & D resulting in energy efficient Expellers.

Kumar New Oil_N_Oil Series Expellers are designed for crushing all types of oil seeds like sunflower, Mustard, Groundnut, sesame, soybean, Copra, Palm Kernel, Jatropha, shea nut and various other edible and non edible oil seeds. Salient Features :
  • Maximum Oil Yield at low operating cost.
  • Easy and time saving main worm shaft removal.
  • Special designed locking type clamping bars and bolts.
  • Worms and Collars are hardened and tempered
  • Cage bars are hardened and tempered
  • Heavy duty bearings for thrust loads.
  • Low residual oil content in cake.
  • Low Power consumption.
Model Capacity Power
MARK I 3 TPD 10 HP
MARK II 7 TPD 20 HP
MARK III 9 TPD 25 HP
MARK IV 12 TPD 30 HP
MARK V 15 TPD 40 HP
MARK VI 22 TPD 50 HP
